QUAVA mini Reactor
- We offer the environment of good research.
- 1.The exact and stabilized ultrasonic output.
Average power variety +-１%
Setting power unit 0.1W
2.It corresponds to broad frequency.
Oscillating frequency 26 kHz - 1.6 MHz
Multiple frequency can be operated by 1 generator.
3.Compact and high convenience.
Size of a generator 218 x 258 x 138
Free power source AC100V - 240V
Generator
※You can see the entire table by scrolling.
| model | QUAVA mini （low freq. Type） 30110(QR -001) |
QUAVA mini （high freq. Type） 30110(QR -003) |
|---|---|---|
| Frequency | 26・78・130kHz 38・100・160kHz |
200・430・950kHz 1.6MHz |
| Output | 1～50W | 1～100W |
| Adjusted output range | 0.1 W | |
| Power source | AC 100～240V | |
| Outer dimentions（mm） | 218（W）×258（D）×138（H） | |
| Weight | 4.6kg | |
※You can see the entire table by scrolling.
Transducer unit
※You can see the entire table by scrolling.
| Frequency model | 26・78・130 kHz Multi 30201V | 38・100・160 kHz Multi 30301VS | 200 kHz 30600S | 430 kHz 30700S | 950 kHz 30800S | 16 MHz 30900S |
|---|---|---|---|---|---|---|
| Outer dimentions(mm) | 140（W）×140（D）×108 （H） | |||||
| material | SUS | |||||
| Inlet/Outl | 2Line(pi 8 pi 10) | |||||
※You can see the entire table by scrolling.
Outer tank unit
※You can see the entire table by scrolling.
| material | PVC | PVC Hose connector | PVC Valve | PVC O/F | SUS |
|---|---|---|---|---|---|
| TYPE | 3266412 | 3265088 | 3266413 | 3266414 | 3266415 |
| "Outer dimentions Other than a drain" | □138 ×150(H) |
□138 ×150(H) |
□138 ×150(H) |
138(W) ×165(D) ×150(H) |
□138 ×150(H) |
| Dimensions in the tank | □100 ×150(H) |
□100 ×150(H) |
□100 ×150(H) |
□100 ×150(H) |
□107 ×150(H) |
| Adaptation hose inside diameter | - | Φ10ｍｍ ×2 |
Φ9ｍｍ ×2 |
Φ9・Φ12ｍｍ ×1 |
- |
※You can see the entire table by scrolling.

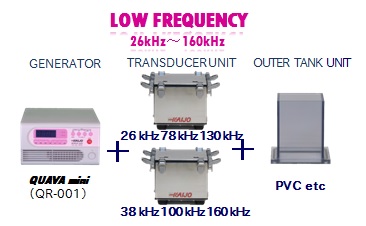

.jpg "低周波数帯（26～160kHz）")

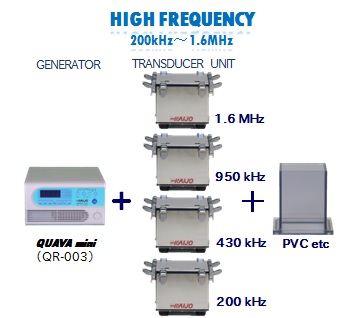

.jpg "高周波数帯（200kHz～1.6MHz）")
