Product information
| Kaijo’s ODM and OEM |
 |
| Kaijo designs and manufactures related ultrasonic components to meet customers’ needs. We can provide a wide range of ultrasonic application units for R&D and production uses such as Home appliances, Food processing equipment and Packaging equipment. A wide range of ultrasonic applications that also includes cleaning, adhesion, accelerating of reaction, coagulation, dispersion, sterilization and measurement. |
Customized transducers
Ultrasonic transducer can be made in accordance with customers' requirements.
Following are some products examples.
We offer designing and manufacturing services for cleaning and measurement devices

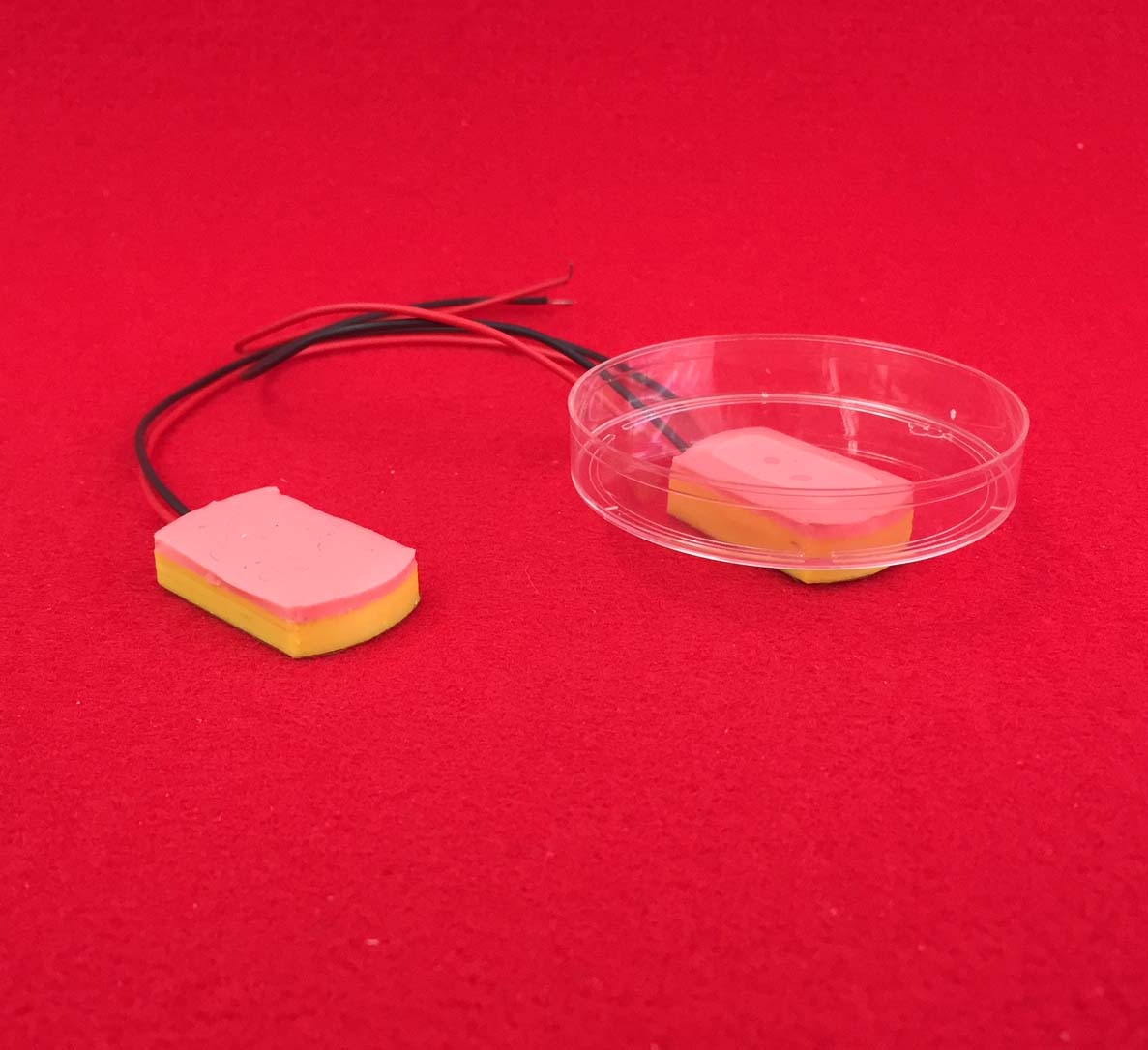

| Contact type transducer (low frequency) |
 |
| Frequency: |
35kHz, 40kHz BLT |
| Output: | 50W Max |
| Size(mm): | Depends on the shapes of BLT |
| Feature: | reusable adhesive contact. |
| Contact type transducer (high frequency) |
 |
| Frequency: |
1.6MHz, 2.4MHz |
| Output: | Depends on the shape |
| Size(mm): | Specified size can be manufactured |
| Feature: | reusable adhesive contact. |

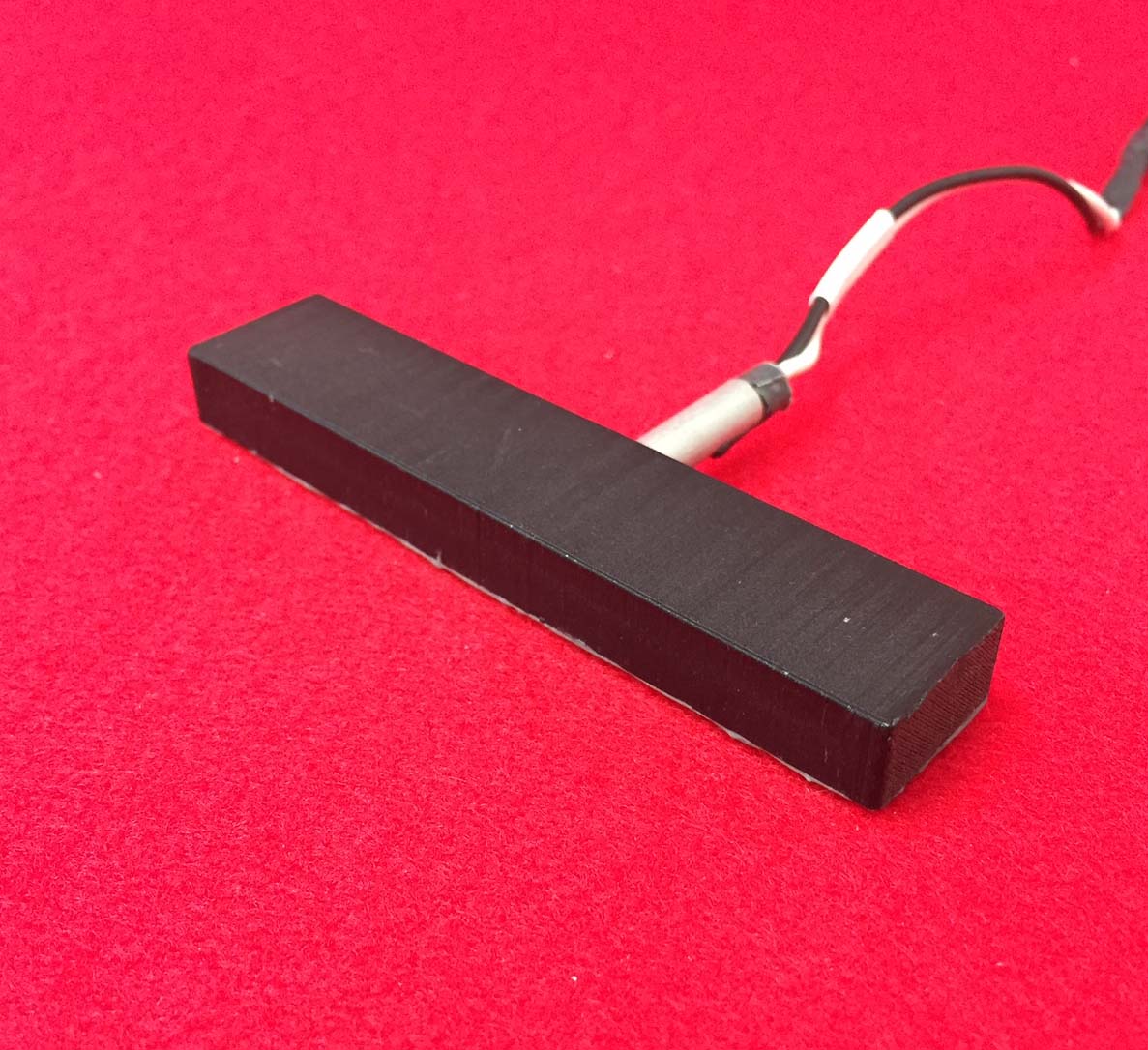

| Indirect irradiation type transducer |
 |
| Frequency: |
200, 450kHz 1.0, 1.8MHz |
| Output: | 100W Max |
| Size(mm): | Depends on the frequency |
| Feature: | Can be used in any water tank or beaker |
| Photo: Size 200kHz |

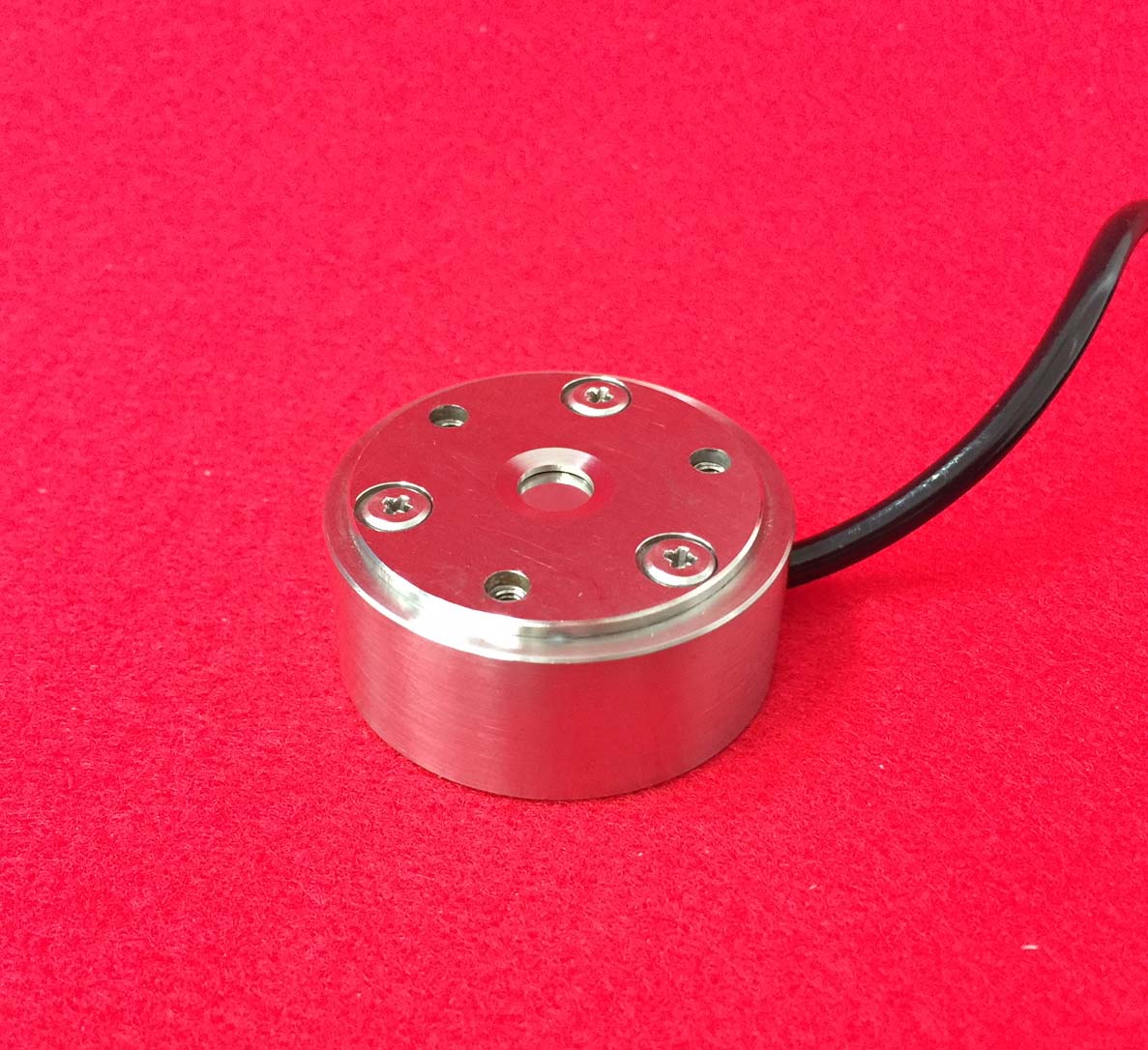

| Pendant type transducer |
 |
| Frequency: |
40kHz ～ 700kHz |
| Output: | 50W Max |
| Size:(mm) | φ55 |
| Uses: (使用例) | Indirect irradiation type (small version) |
| Photo: Size 40kHz |

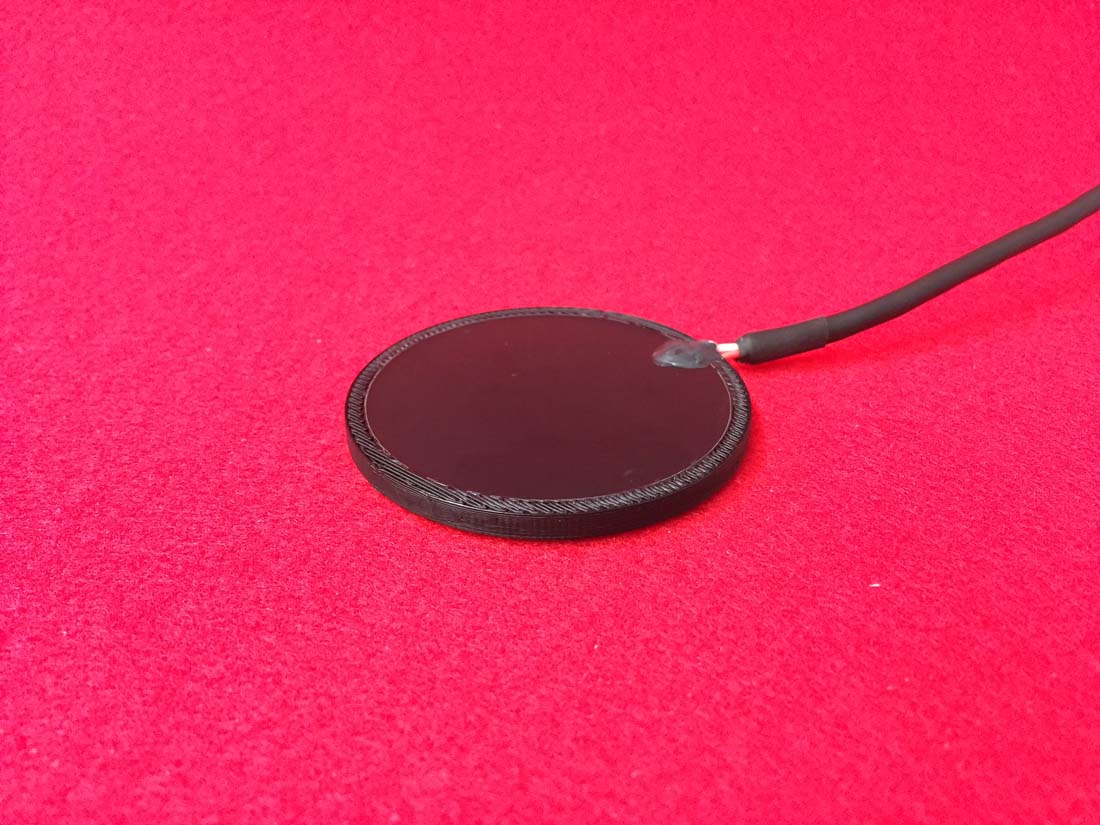

| transducer for Atomization |
 |
| Frequency: |
1.6MHz, 2.4MHz |
| Output: | 40W Max |
| Size(mm): | φ40 x 18(H) |
| Feature: | 4Creates a large volume of atomization at 40W. Superior durability even at high-temperatures |
| photo: Size 2.4Mhz |

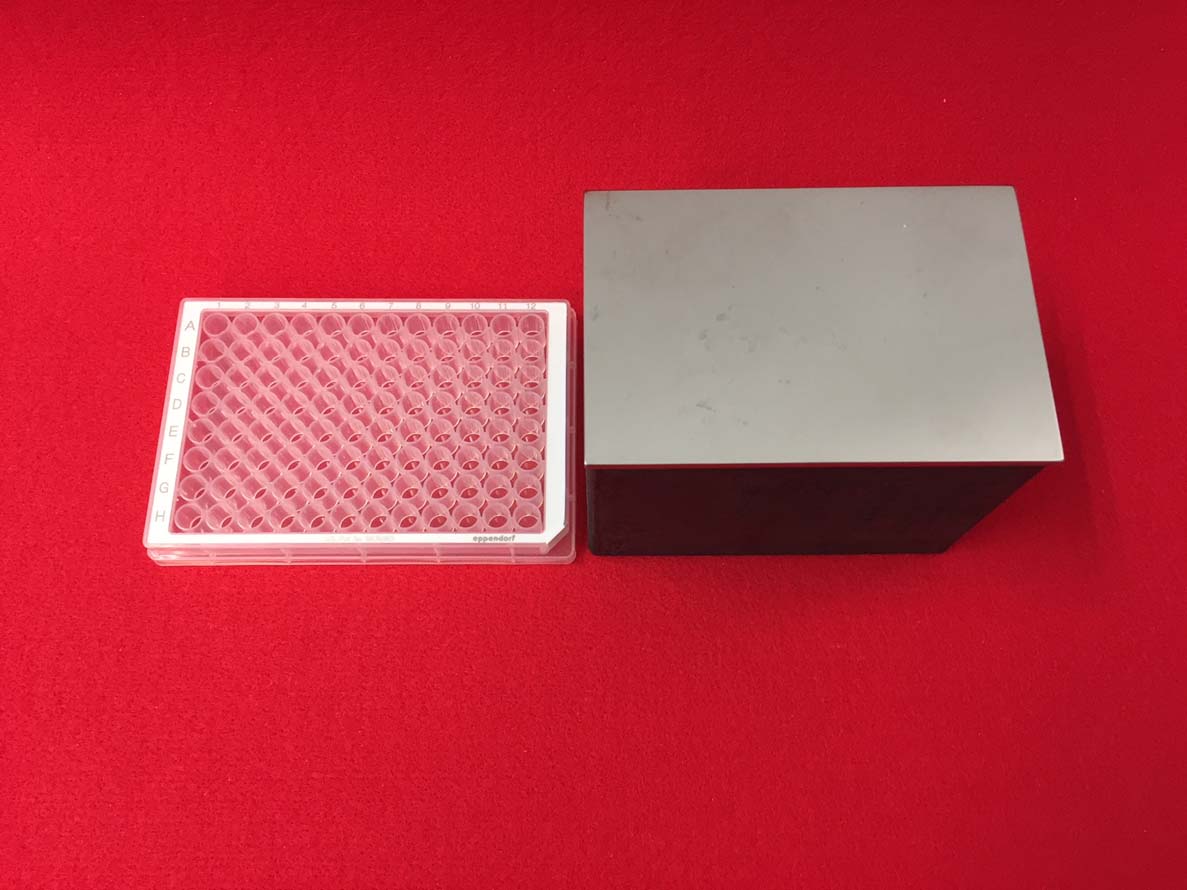

| transducer for Microplate |
 |
| Frequency: |
29.5kHz |
| Output: | 75W |
| Size(mm): | 110(W) x 75(D) x 110(H) |
| Uses: | Agitate 96ch microplate |

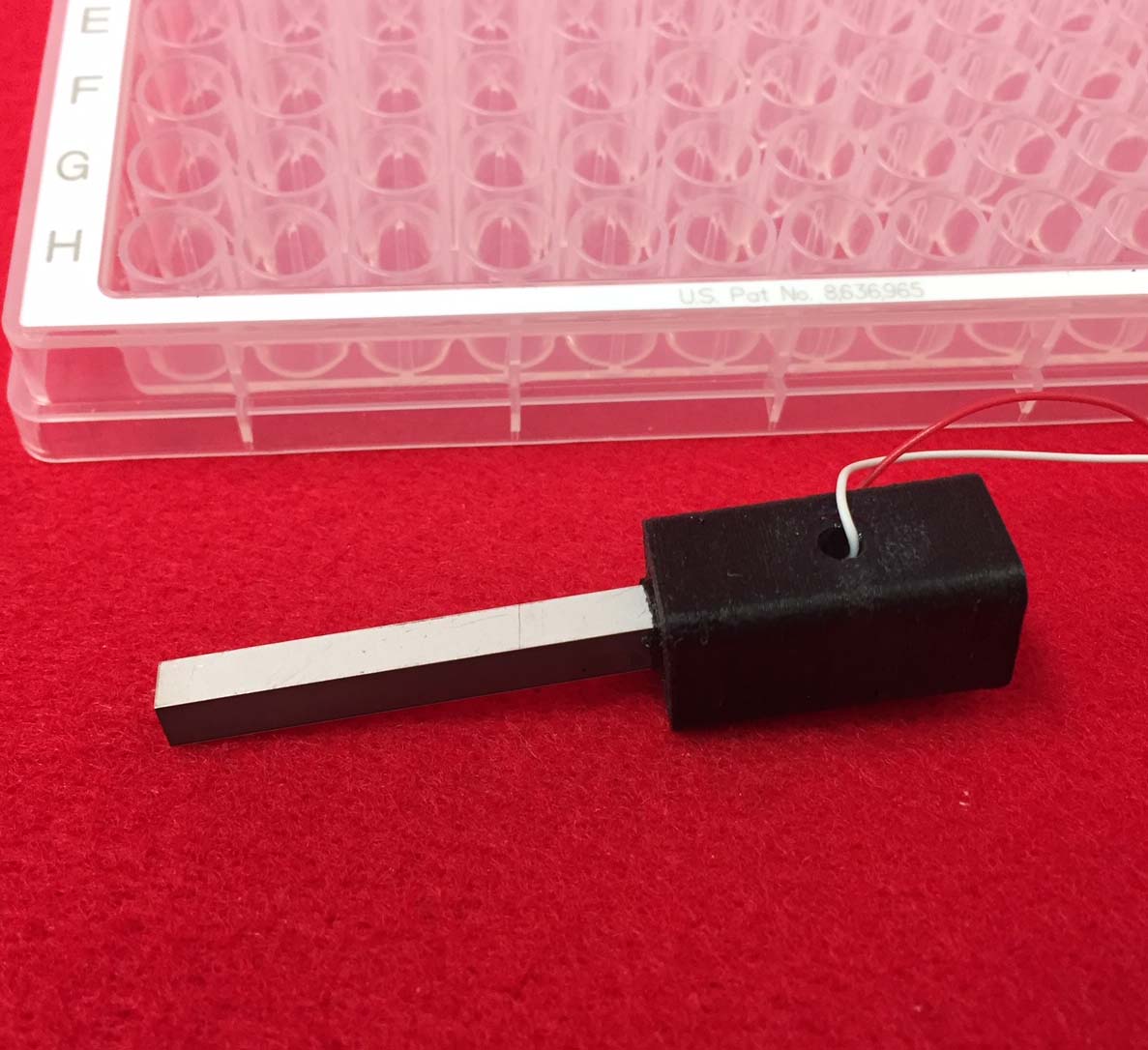

| Square shape pole transducer |
 |
| Frequency: |
30kHz 50kHz |
| Output: | 30W |
| Size(mm): | 4(W) x 4(D) x 60(H) (part of transducer) |
| Uses: | Agitate the contents in each well of the microplate |
| photo: Size 30kHz |

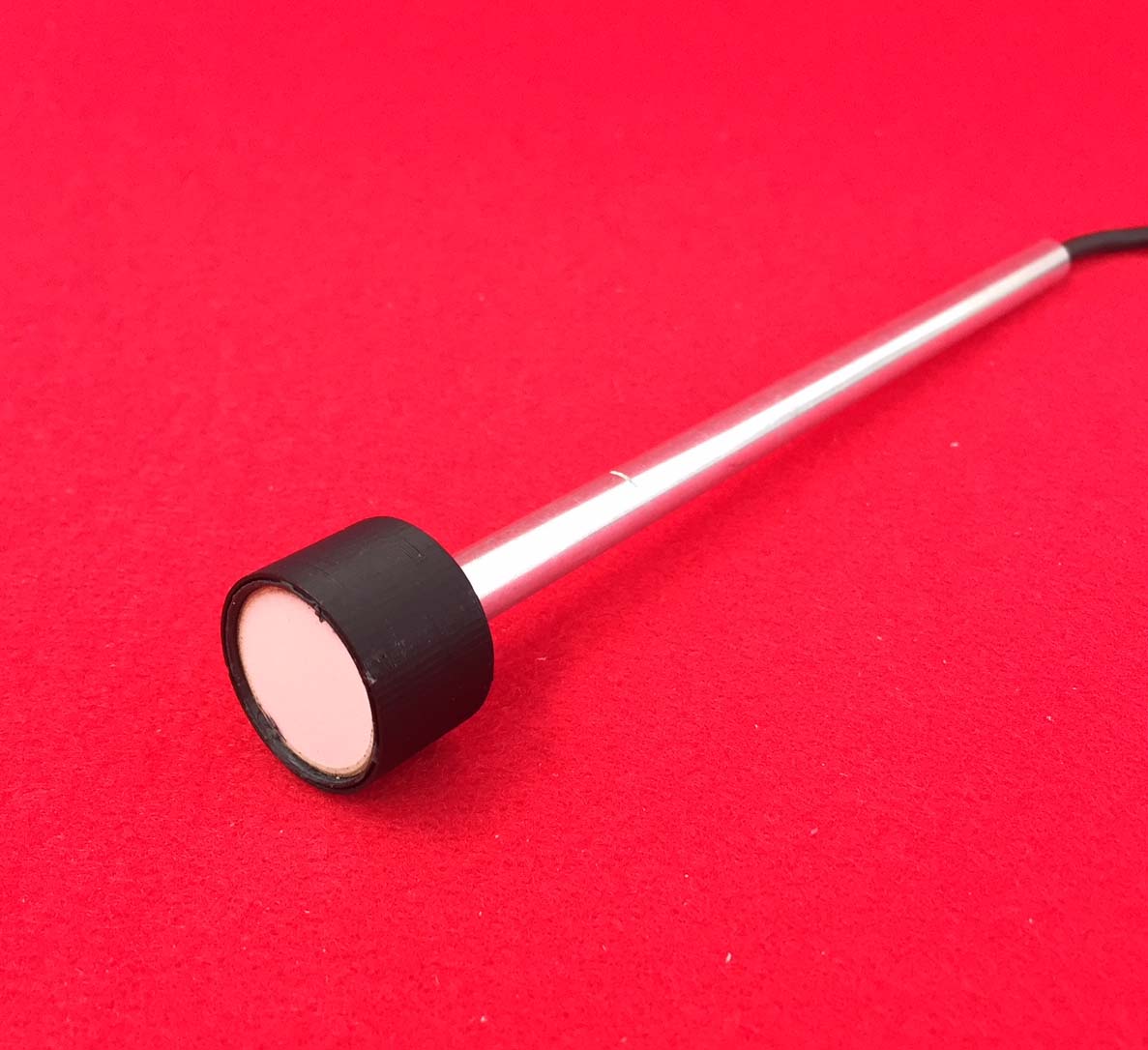

| Stick type transducer |
 |
| Frequency: |
1.6MHz 2.4MHz |
| Output: | 10W |
| Size(mm): | φ20 x 170(H) include the handle |
| Uses: | Placed in a container to transmit ultrasonic vibration |
| photo: Size 2.4MHz |
| Built-in type transducer |
 |
| Frequency: |
40kHz - 2MHz |
| Output: | Depends on the frequency and the shape |
| Size(mm): | Please contact us |
| Uses: | ultrasonic waves irradiates to the specified parts |
